- Toepassing: voor samenvoeging van twee meeraderige geleiders
- Materiaal: DIN EN 13600 Koper (Cu-HCP)
- Afwerking: galvanisch vertind
- Doorsnede: 2x70-2x120 mm2

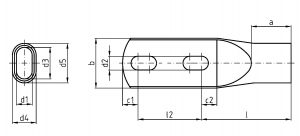

| Doorsnede mm² | Gatmaat | Standaard vertind Artikelnummer | d1 | d3 | d4 | d5 | d2 | b | l | l2 | a | c1 | c2 | Gewicht (kg/100) | VPE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 x 70 | 2 x 12 | ICD7012DDL | 11.5 | 23.3 | 18 | 29.8 | 13 | 37 | 71.5 | 38-60 | 28 | 14.5 | 14.5 | 26 | 5 |
| 2 x 95 | 2 x 12 | ICD9512DDL | 14 | 26.1 | 22 | 33.6 | 13 | 42 | 81.5 | 38-60 | 35 | 14.5 | 14.5 | 41 | 5 |
| 2 x 120 | 2 x 12 | ICD12012DDL | 14.9 | 29.8 | 22.4 | 37.3 | 13 | 47 | 84.5 | 38-60 | 35 | 14.5 | 14.5 | 47 | 5 |
