- Toepassing: voor meeraderige en fijnaderige geleiders
- Materiaal: Koper (Cu-HCP)
- Afwerking: galvanisch vertind
- Doorsnede: 0,5-150 mm2

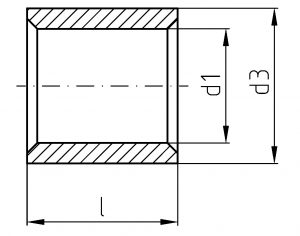

| Doorsnede mm² | Artikelnummer | l | d1 | d3 | Gewicht (kg/100) | VPE |
|---|---|---|---|---|---|---|
| 0,5-1 | ICQ1PV | 7 | 1.6 | 3.3 | 0.04 | 100 |
| 1,5-2,5 | ICQ2PV | 7 | 2.3 | 4 | 0.05 | 100 |
| 4,0-6,0 | ICQ6PV | 7 | 3.6 | 5.7 | 0.09 | 100 |
| 10 | ICQ10PV | 9 | 4.6 | 6.8 | 0.15 | 100 |
| 16 | ICQ16PV | 10 | 5.9 | 8.3 | 0.23 | 100 |
| 25 | ICQ25PV | 12.5 | 7.7 | 10.7 | 0.45 | 100 |
| 35 | ICQ35PV | 14 | 9.2 | 12.4 | 0.65 | 100 |
| 50 | ICQ50PV | 17.5 | 11.2 | 14.8 | 1.13 | 100 |
| 70 | ICQ70PV | 18 | 13.5 | 17.5 | 1.59 | 100 |
| 95 | ICQ95PV | 19 | 15 | 20 | 2.34 | 50 |
| 120 | ICQ120PV | 21 | 16.7 | 22.7 | 3.53 | 50 |
| 150 | ICQ150PV | 25 | 19 | 25.5 | 5.02 | 50 |
