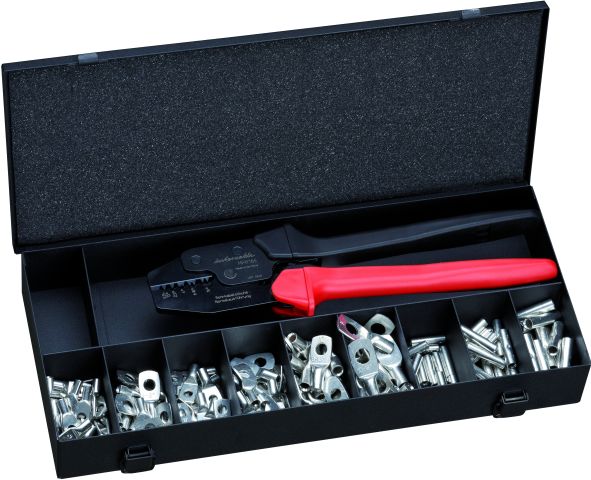

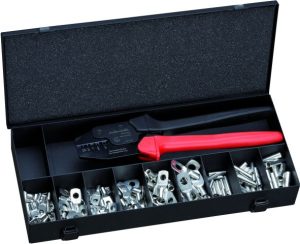

Assortimentskoffer met MPR16K kabelschoenen en verbinders 6 - 16mm2 , R-serie
Inhoud:
MPR16K
Basistang 6 - 16 mm²
| Aantal | Art.nr. | Doorsnede mm² | Gatmaat | d1= | d3= | l= |
|---|---|---|---|---|---|---|
| 20 | ICR66 | 6 mm² | 6 | 3.5 | 6.5 | 21.5 |
| 20 | ICR68 | 6 mm² | 8 | 3.5 | 6.5 | 24 |
| 20 | ICR106 | 10 mm² | 6 | 4.5 | 7 | 22.5 |
| 20 | ICR108 | 10 mm² | 8 | 4.5 | 7 | 25 |
| 20 | ICR168 | 16 mm² | 8 | 5.5 | 8.5 | 29 |
| 20 | ICR1610 | 16 mm² | 10 | 5.5 | 8.5 | 31 |
| Aantal | Art.nr. | Doorsnede mm² | d1 | d3 | l |
|---|---|---|---|---|---|
| 20 | ICR6V | 6 mm² | 3.5 | 6.5 | 25 |
| 20 | ICR10V | 10 mm² | 4.5 | 7 | 30 |
| 20 | ICR16V | 16 mm² | 5.5 | 8.5 | 35 |
