- Toepassing: voor meeraderige, fijnaderige en verdichte meer-en fijnaderige geleiders en voor massieve geleiders van 6-16 mm2
- Materiaal: DIN EN 13600 Koper (Cu-HCP),
- Afwerking: galvanisch vertind
- Doorsnede: 6-120 mm2

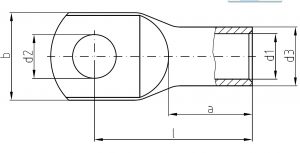

| Doorsnede mm² | Gatmaat | Artikelnummer | d1 | d3 | d2 | b | l | a | Gewicht (kg/100) | Inhoud st | VPE |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 5 | ICR65SB10 | 3.5 | 6.5 | 5.3 | 10 | 20 | 9 | 0.47 | 10 | 1 |
| 6 | ICR66SB10 | 6.4 | 11 | 21.5 | 0.54 | 10 | 1 | ||||
| 8 | ICR68SB10 | 8.4 | 15 | 24 | 0.6 | 10 | 1 | ||||
| 10 | 6 | ICR106SB10 | 4.5 | 7 | 6.4 | 12 | 22.5 | 10 | 0.51 | 10 | 1 |
| 8 | ICR108SB10 | 8.4 | 15 | 25 | 0.6 | 10 | 1 | ||||
| 16 | 8 | ICR168SB10 | 5.5 | 8.5 | 8.4 | 15 | 29 | 13 | 1.04 | 10 | 1 |
| 10 | ICR1610SB10 | 10.5 | 18 | 31 | 1.1 | 10 | 1 | ||||
| 25 | 8 | ICR258SB10 | 7 | 10 | 8.4 | 16 | 33 | 15 | 1.3 | 10 | 1 |
| 10 | ICR2510SB10 | 10.5 | 18 | 34.5 | 1.51 | 10 | 1 | ||||
| 35 | 8 | ICR358SB10 | 8.5 | 12 | 8.4 | 17 | 34 | 17 | 2.18 | 10 | 1 |
| 10 | ICR3510SB10 | 10.5 | 20 | 36.5 | 2.27 | 10 | 1 | ||||
| 50 | 10 | ICR5010SB10 | 10 | 14 | 10.5 | 20 | 40.5 | 19 | 3.17 | 10 | 1 |
| 12 | ICR5012SB10 | 13 | 23 | 42 | 3.26 | 10 | 1 | ||||
| 70 | 8 | ICR708SB5 | 12 | 16.5 | 8.4 | 24 | 42.5 | 21 | 4.5 | 5 | 1 |
| 10 | ICR7010SB5 | 10.5 | 24 | 43.5 | 4.78 | 5 | 1 | ||||
| 95 | 10 | ICR9510SB5 | 13.5 | 18 | 10.5 | 26 | 47 | 23 | 5.51 | 5 | 1 |
| 12 | ICR9512SB5 | 13 | 26 | 48 | 5.54 | 5 | 1 | ||||
| 120 | 10 | ICR12010SB5 | 15 | 20 | 10.5 | 29 | 52 | 26 | 8.39 | 5 | 1 |
| 12 | ICR12012SB5 | 13 | 29 | 51.5 | 7.85 | 5 | 1 |
Aansluitsets voor NYCWY- Kabel
| Doorsnede mm² | Gatmaat | Artikelnummer | d1 | d3 | d2 | b | l | a | Gewicht (kg/100) | Inhoud st | VPE |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 8 | ICR2516SB41 | 7 | 10 | 8.4 | 16 | 33 | 15 | 0.064 | 4 | 1 |
| 16 | 8 | 5.5 | 8.5 | 8.4 | 15 | 29 | 13 | 1 | |||
| 35 | 8 | ICR3516SB41 | 8.5 | 12 | 8.4 | 17 | 34 | 17 | 0.088 | 4 | 1 |
| 16 | 8 | 5.5 | 8.5 | 8.4 | 15 | 29 | 13 | 1 | |||
| 50 | 10 | ICR5025SB41 | 10 | 14 | 10.5 | 20 | 40.5 | 19 | 0.138 | 4 | 1 |
| 25 | 8 | 7 | 10 | 8.4 | 16 | 33 | 15 | 1 | |||
| 70 | 10 | ICR7035SB41 | 12 | 16.5 | 10.5 | 24 | 43.5 | 21 | 0.2 | 4 | 1 |
| 35 | 8 | 8.5 | 12 | 8.4 | 17 | 34 | 17 | 1 | |||
| 95 | 12 | ICR9550SB41 | 13.5 | 18 | 13 | 26 | 48 | 23 | 0.248 | 4 | 1 |
| 50 | 10 | 10 | 14 | 10.5 | 20 | 40.5 | 19 | 1 | |||
| 120 | 12 | ICR12070SB41 | 15 | 20 | 13 | 29 | 51.5 | 26 | 0.338 | 4 | 1 |
| 70 | 10 | 12 | 16.5 | 10.5 | 24 | 43.5 | 21 | 1 | |||
| 150 | 12 | ICR15070SB41 | 16.8 | 21.3 | 13 | 31 | 56 | 29 | 0.358 | 4 | 1 |
| 70 | 10 | 12 | 16.5 | 10.5 | 24 | 43.5 | 21 | 1 | |||
| 185 | 16 | ICR18595SB41 | 19 | 24 | 17 | 35 | 63 | 30 | 0.488 | 4 | 1 |
| 95 | 12 | 13.5 | 18 | 13 | 26 | 48 | 23 | 1 | |||
| 240 | 16 | ICR240120SB41 | 21 | 26 | 17 | 38 | 69.5 | 35 | 0.592 | 4 | 1 |
| 120 | 12 | 15 | 20 | 13 | 29 | 51.5 | 26 | 1 |
