- Toepassing: voor meeraderige, fijnaderige en verdichte meer-en fijnaderige geleiders en voor massieve geleiders van 10-16 mm²
- Materiaal: DIN EN 13600 Koper (Cu-HCP),
- Afwerking: galvanisch vertind
- Doorsnede: 10-240 mm²

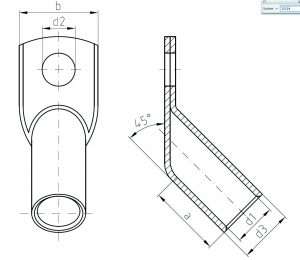

| Doorsnede mm² | Gatmaat | Artikelnummer | d1 | d3 | d2 | b | a | Gewicht (kg/100) | VPE | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 5 | ICR10545 | 4.5 | 7 | 5.3 | 12 | 9 | 0.55 | 25 | ||
| 6 | ICR10645 | 6.4 | 12 | 0.58 | 25 | ||||||
| 8 | ICR10845 | 8.4 | 15 | 0.65 | 25 | ||||||
| 16 | 5 | ICR16545 | 5.5 | 8.5 | 5.3 | 12 | 12 | 0.95 | 25 | ||
| 6 | ICR16645 | 6.4 | 12 | 1.02 | 25 | ||||||
| 8 | ICR16845 | 8.4 | 15 | 1.2 | 25 | ||||||
| 10 | ICR161045 | 10.5 | 18 | 1.17 | 25 | ||||||
| 25 | 6 | ICR25645 | 7 | 10 | 6.4 | 15 | 14 | 1.55 | 25 | ||
| 8 | ICR25845 | 8.4 | 16 | 1.51 | 25 | ||||||
| 10 | ICR251045 | 10.5 | 18 | 2.05 | 25 | ||||||
| 12 | ICR251245 | 13 | 20 | 1.7 | 25 | ||||||
| 35 | 6 | ICR35645 | 8.5 | 12 | 6.4 | 17 | 16 | 2.17 | 25 | ||
| 8 | ICR35845 | 8.4 | 17 | 2.23 | 25 | ||||||
| 10 | ICR351045 | 10.5 | 20 | 2.34 | 25 | ||||||
| 12 | ICR351245 | 13 | 22 | 2.4 | 25 | ||||||
| 50 | 8 | ICR50845 | 10 | 14 | 8.4 | 20 | 18 | 3.34 | 25 | ||
| 10 | ICR501045 | 10.5 | 20 | 3.65 | 25 | ||||||
| 12 | ICR501245 | 13 | 23 | 3.65 | 25 | ||||||
| 70 | 8 | ICR70845 | 12 | 16.5 | 8.4 | 24 | 20 | 4.9 | 25 | ||
| 10 | ICR701045 | 10.5 | 24 | 5.23 | 25 | ||||||
| 12 | ICR701245 | 13 | 24 | 5.17 | 25 | ||||||
| 95 | 8 | ICR95845 | 13.5 | 18 | 8.4 | 26 | 22 | 8 | 25 | ||
| 10 | ICR951045 | 10.5 | 26 | 6.2 | 25 | ||||||
| 12 | ICR951245 | 13 | 26 | 6.2 | 25 | ||||||
| 120 | 8 | ICR120845 | 15 | 20 | 8.4 | 29 | 25 | 7.8 | 25 | ||
| 10 | ICR1201045 | 10.5 | 29 | 8.36 | 25 | ||||||
| 12 | ICR1201245 | 13 | 29 | 8.68 | 25 | ||||||
| 16 | ICR1201645 | 17 | 30 | 8.85 | 25 | ||||||
| 150 | 8 | ICR150845* | 16.8 | 21.3 | 8.4 | 31 | 28 | 10.2 | 10 | ||
| 10 | ICR1501045 | 10.5 | 31 | 9.87 | 10 | ||||||
| 12 | ICR1501245 | 13 | 31 | 9.68 | 10 | ||||||
| 16 | ICR1501645 | 17 | 31 | 10.12 | 10 | ||||||
| 185 | 10 | ICR1851045 | 19 | 24 | 10.5 | 35 | 29 | 12.9 | 10 | ||
| 12 | ICR1851245 | 13 | 35 | 12.29 | 10 | ||||||
| 16 | ICR1851645 | 17 | 35 | 11.96 | 10 | ||||||
| 20 | ICR1852045 | 21 | 35 | 14.58 | 10 | ||||||
| 240 | 12 | ICR2401245 | 21 | 26 | 13 | 38 | 15.58 | 10 | |||
| 16 | ICR2401645 | 17 | 38 | 16.51 | 10 | ||||||
| 20 | ICR2402045 | 21 | 38 | 17.04 | 10 | ||||||
| 300 | 12 | ICS3001245 | 24 | 30 | 13 | 43 | 41 | 25.70 | 15 | ||
| 16 | ICS3001645 | 17 | 43 | 25.68 | 15 | ||||||
| 20 | ICS3002045 | 21 | 43 | 24.10 | 15 |
