- Toepassing: voor Al-kabels volgens DIN 48201 en AL-draad volgens DIN EN 50182
- Materiaal: Al 99,5 & Cu-ETP volgens DIN 13601
- Afwerking: blank, met contactvet gevuld, gesloten
- Doorsnede: 16-300 mm2
- Buismaten volgens DIN 46267 Deel 1 en 2

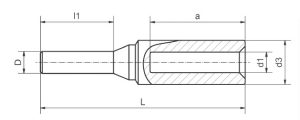

| Doorsnede mm² AL meerdradig | Doorsnede mm² AL massief | ø mm² CU stift | Artikelnummer | Ref.nr. Persing | d1 | d3 | b | l1 | l | Gewicht (kg/100) | Gewicht (kg/100) Cu | VPE | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 25 | 6 | ICALCU16B6V | 12 | 5.6 | 12 | 6 | 20 | 58 | 1.45 | 0.68 | 10 | |
| 25 | 35 | 6 | ICALCU25B6V | 12 | 6.8 | 12 | 6 | 20 | 58 | 1.49 | 0.69 | 10 | |
| 35 | 50 | 7 | ICALCU35B7V | 14 | 8 | 14 | 7 | 22 | 71 | 2.34 | 1.03 | 10 | |
| 50 | 70 | 8 | ICALCU50B8V | 16 | 9.8 | 16 | 8 | 25 | 74 | 3.27 | 1.6 | 10 | |
| 70 | 95 | 10 | ICALCU70B10V | 18 | 11.2 | 18.5 | 10 | 30 | 87 | 5.53 | 2.77 | 10 | |
| 95 | 120 | 12 | ICALCU95B12V | 22 | 13.2 | 22 | 12 | 33 | 91 | 8.16 | 4.36 | 10 | |
| 120 | 150 | 12 | ICALCU120B12V | 22 | 14.7 | 23 | 12 | 38 | 97 | 9.4 | 5.14 | 10 | |
| 150 | 185 | 12 | ICALCU150B12V | 25 | 16.3 | 25 | 12 | 38 | 108 | 11.43 | 5.61 | 5 | |
| 185 | 240 | 14 | ICALCU185B14V | 28 | 18.3 | 28.5 | 14 | 44 | 116 | 16.29 | 8.71 | 5 | |
| 240 | 300 | 16 | ICALCU240B16V | 32 | 21 | 32 | 16 | 44 | 128 | 22.3 | 11.43 | 5 | |
| 300 | - | 18 | ICALCU300B18V | 34 | 23.3 | 34 | 18 | 46 | 131 | 26 | 14.37 | 1 |
