- Toepassing: voor Al-kabels voor middenspanning 10-30 kV
- Materiaal: Al 99,5
- Afwerking: blank, met contactvet gevuld, gesloten
- Doorsnede: 95-1000 mm2
- Buisafmetingen volgens DIN 46267 Deel 2

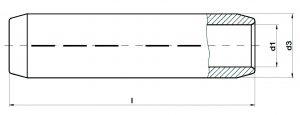

| Doorsnede mm² meerdradig | Doorsnede mm² massief | Artikelnummer | Ref.nr. Persing | d1 | d3 | l | Gewicht (kg/100) | VPE |
|---|---|---|---|---|---|---|---|---|
| 95 | 120 | ICAL95V30 | 22 | 13.4 | 22 | 100 | 6.3 | 10 |
| 120 | 150 | ICAL120V30 | 22 | 15 | 23 | 105 | 6.5 | 10 |
| 150 | 185 | ICAL150V30 | 25 | 16.5 | 25 | 105 | 7.5 | 5 |
| 185 | 240 | ICAL185V30 | 28 | 18.5 | 28.5 | 125 | 12 | 5 |
| 240 | 300 | ICAL240V30 | 32 | 21.3 | 32 | 125 | 14.4 | 5 |
| 300 | - | ICAL300V30 | 34 | 23.3 | 34 | 125 | 13.7 | 1 |
| 400 | - | ICAL400V30 | 38 | 26 | 38.5 | 150 | 24.8 | 1 |
| 500 | - | ICAL500V30 | 44 | 29 | 44 | 170 | 38 | 1 |
| 625 | - | ICAL625V30 | 52 | 35 | 52 | 200 | 60.2 | 1 |
| 800 | - | ICAL800V30 | 58 | 40 | 58 | 235 | 87.5 | 1 |
| 1000 | - | ICAL1000V30 | 60 | 44 | 60 | 235 | 82.5 | 1 |
