Al-kabelschoenen DIN 46329 | Intercable Nederland B.V.

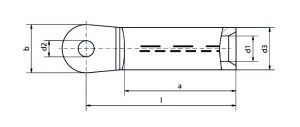

Doorsnede mm² meerdradig	Doorsnede mm² massief	Gatmaat	Artikelnummer	Ref.nr. Persing	d1	d3	d2	b	l	a	Gewicht (kg/100)	VPE
16	25	8	ICAL168LD	12	5.8	12	8.4	20	53	30	1.34	10
		10	ICAL1610LD				10.5				1.3	10
25	35	8	ICAL258LD	12	6.8	12	8.4	25	53	30	1.4	10
		10	ICAL2510LD				10.5				1.36	10
		12	ICAL2512LD				13				1.31	10
35	50	8	ICAL358LD	14	8	14	8.4	25	65	42	2.03	10
		10	ICAL3510LD				10.5				1.99	10
		12	ICAL3512LD				13				1.94	10
50	70	8	ICAL508LD	16	9.8	16	8.4	25	65	42	2.59	10
		10	ICAL5010LD				10.5				2.55	10
		12	ICAL5012LD				13				2.48	10
70	95	8	ICAL708LD	18	11.2	18	8.4	25	75	52	3.68	10
		10	ICAL7010LD				10.5				3.63	10
		12	ICAL7012LD				13				3.56	10
95	120	8	ICAL958LD	22	13.2	22	8.4	25	81	56	5.81	10
		10	ICAL9510LD				10.5				5.75	10
		12	ICAL9512LD				13				5.66	10
120	150	10	ICAL12010LD	22	14.7	23	10.5	30	86	56	6.89	10
		12	ICAL12012LD				13				6.79	10
		16	ICAL12016LD				17				5.46	10
150	185	10	ICAL15010LD	25	16.3	25	10.5	30	90	60	8.74	5
		12	ICAL15012LD				13				8.62	5
		16	ICAL15016LD				17				8.39	5
		20	ICAL15020LD				21				8.09	5
185	240	10	ICAL18510LD	28	18.3	28.5	10.5	30	91	60	11	5
		12	ICAL18512LD				13				10.89	5
		16	ICAL18516LD				17				10.48	5
		20	ICAL18520LD				21				10.18	5
240	300	10	ICAL24010LD	32	21	32	10.5	38	106	70	16.24	5
		12	ICAL24012LD				13				16.08	5
		16	ICAL24016LD				17				15.76	5
		20	ICAL24020LD				21				15.35	5
300	-	12	ICAL30012LD	34	23.3	34	13	38	106	70	17.76	1
		16	ICAL30016LD				17				17.38	1
		20	ICAL30020LD				21				16.9	1
400	-	12	ICAL40012LD	38	26	38.5	13	38	116	73	25.98	1
		16	ICAL40016LD				17				25.57	1
		20	ICAL40020LD				21				25.05	1
500	-	12	ICAL50012LD	44	29	44	13	44	122	79	36.04	1
		16	ICAL50016LD				17				35.6	1
		20	ICAL50020LD				21				35.04	1
