- Toepassing: verhogingsring voor gebruik met Al- of Cu- kabelschoenen
- Materiaal: E/Al
- Afwerking: eenzijdig met koper belegd aluminium

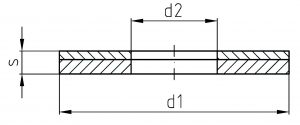

| Gatmaat | Artikelnummer | d1 | d2 | s | Gewicht (kg/100) | Gewicht (kg/100)Cu | VPE | Voor kabelschoen tot max mm 2 |
|---|---|---|---|---|---|---|---|---|
| 6 | ICALCU6CS | 16 | 6.5 | 1 | 0.08 | 0.04 | 25 | 120 |
| 8 | ICALCU8CS | 18 | 8.5 | 1 | 0.1 | 0.04 | 25 | 120 |
| 10 | ICALCU10CS | 23 | 10.5 | 1 | 0.15 | 0.08 | 25 | 240 |
| 10 | ICALCU10CS2 | 26 | 11 | 1 | 0.2 | 0.1 | 25 | 300 |
| 12 | ICALCU12CS2 | 26 | 13 | 2 | 0.28 | 0.16 | 25 | 240 |
| 12 | ICALCU12CS | 30 | 13 | 2 | 0.52 | 0.24 | 25 | 400 |
| 12 | ICALCU12CS3 | 46 | 13 | 2 | 1.03 | 0.46 | 25 | 500 |
| 16 | ICALCU16CS | 35 | 17 | 2 | 0.63 | 0.31 | 25 | 500 |
| 16 | ICALCU16CS2 | 46 | 17 | 2 | 0.96 | 0.43 | 25 | 630 |
| 20 | ICALCU20CS | 37 | 21 | 2 | 0.6 | 0.3 | 25 | 500 |
| 20 | ICALCU20CS2 | 46 | 21 | 2 | 0.88 | 0.4 | 25 | 630 |
