Al/Cu kabelschoenen

  • Toepassing: voor Al-kabels volgens DIN 48201 en AL-draad volgens DIN EN 50182
  • Materiaal: Al 99,5
  • Afwerking: blank, met contactvet gevuld, gesloten
  • Doorsnede: 25-500 mm2
  • Buismaten volgens DIN 46329

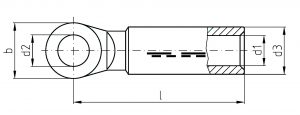

Doorsnede mm² rm/sm*Doorsnede mm² se*GatmaatArtikelnummerRef.nr. Persingd1d3d2blGewicht (kg/100)Gewicht (kg/100) CuVPE
10-8ICALCU108105108.420502.712.2810
16258ICALCU168125.6128.420603.542.6810
10ICALCU161010.520603.422.5610
25358ICALCU258126.8128.420653.572.6810
10ICALCU251010.520653.442.5510
12ICALCU25121326674.453.5610
35508ICALCU358148148.420754.553.1710
10ICALCU351010.520754.423.0410
12ICALCU35121326755.153.7610
50708ICALCU508169.8168.420754.873.1910
10ICALCU501010.520754.723.0410
12ICALCU50121326755.954.2410
709510ICALCU70101811.218.510.526857.374.610
12ICALCU70121326857.124.3510
16ICALCU70161730888.15.3310
9512010ICALCU95102213.22210.5268610.595.910
12ICALCU951213268610.345.810
16ICALCU951617308810.996.4810
12015010ICALCU120102214.72310.5268810.686.6410
12ICALCU1201213268810.456.4110
16ICALCU1201617309011.457.4110
15018510ICALCU150102516.325.510.53010013.88.315
12ICALCU15012133010013.578.075
16ICALCU15016173010012.887.185
18524010ICALCU185102818.328.510.53010217.610.35
12ICALCU18512133010217.31105
16ICALCU18516173610519.6812.45
20ICALCU18520213610518.9611.685
24030010ICALCU240103221.532.510.53011220.41105
12ICALCU24012133011220.41105
16ICALCU24016173611522.58125
20ICALCU24020213611521.8511.285
300-10ICALCU300103423.534133011521.8410.81
12ICALCU30012133011521.8410.81
16ICALCU30016173611623.212.81
20ICALCU30020213611622.4912.091
400-10ICALCU40010382638.510.53612532.8717.671
12ICALCU40012133612533.2717.391
16ICALCU40016173612531.9916.791
20ICALCU40020213612531.2516.051
500-10ICALCU5001044294410.54414043.721.571
12ICALCU50012134414043.3321.21
16ICALCU50016174414042.8320.71
20ICALCU50020214414042.0819.951
625-12ICALCU62512523552135017763.0121.771
16ICALCU6251617501777735.41
20ICALCU62520215017776.334.71
